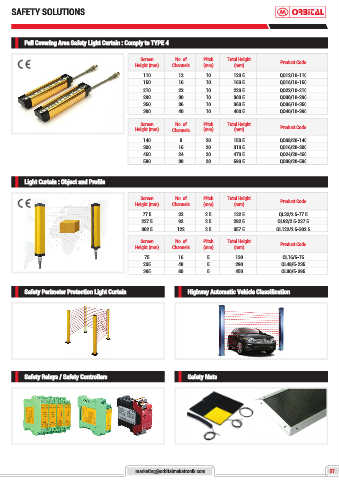

SAFETY SOLUTIONS

Full Covering Area Safety Light Curtain : Comply to TYPE 4

Screen No. of Pitch Total Height
Height (mm) Channels (mm) (mm) Product Code
110 12 10 123.5 QO12/10-110
150 16 10 163.5 QO16/10-150
210 22 10 223.5 QO22/10-210
290 30 10 303.5 QO30/10-290
350 36 10 363.5 QO36/10-350
390 40 10 403.5 QO40/10-390

Screen No. of Pitch Total Height
Height (mm) Channels (mm) (mm) Product Code
140 8 20 153.5 QO08/20-140
300 16 20 313.5 QO16/20-300
460 24 20 473.5 QO24/20-460
580 30 20 593.5 QO30/20-580

Light Curtain : Object and Profile

Screen No. of Pitch Total Height
Height (mm) Channels (mm) (mm) Product Code
77.5 32 2.5 132.5 QL32/2.5-77.5
227.5 92 2.5 282.5 QL92/2.5-227.5
302.5 122 2.5 357.5 QL122/2.5-302.5
Screen No. of Pitch Total Height
Height (mm) Channels (mm) (mm) Product Code
75 16 5 130 QL16/5-75
235 48 5 290 QL48/5-235
395 80 5 450 QL80/5-395

Safety Perimeter Protection Light Curtain Highway Automatic Vehicle Classification

Safety Relays / Safety Controllers Safety Mats

Switches
