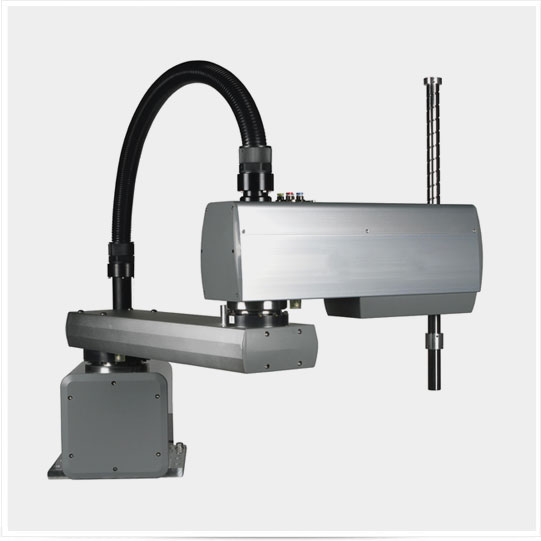

Looking for a Hyulim SCARA robot in India for component assembly, high-speed pick-and-place, machine loading, sorting, packaging or automated testing? Orbital Mekatronik supplies Hyulim DSA Series SCARA robots for repetitive industrial operations requiring fast horizontal movement, controlled vertical travel and rotary positioning. The official Hyulim DSA range is organised into small L Type, medium N Type, large H Type and high-speed S Type configurations, allowing the robot to be selected according to reach, payload, vertical stroke and production cycle.
We support machine manufacturers, industrial automation integrators, assembly-line builders and production plants with SCARA robot selection, payload evaluation, working-range review and commercial quotations.
Share the required arm reach, payload, Z-axis stroke, cycle time, repeatability, product dimensions, end-effector weight and application details. Our team will help identify a suitable Hyulim DSA robot for technical evaluation.
Need Hyulim SCARA robot pricing or help selecting the correct DSA configuration? Share the required reach,
payload including the gripper, vertical stroke, cycle time, repeatability, machine layout and project quantity for a suitable quotation.
Get support for robot selection, controller requirements, end-effector evaluation and project-based procurement.
Fast Repetitive Movement
The SCARA motion structure is suitable for rapid movement between pickup, assembly and placement positions arranged within its horizontal working area.
Compact Automation Layout
A SCARA robot can provide a wide horizontal working envelope without requiring a large rectangular gantry structure. This can help machine builders reduce the space required for repetitive transfer and assembly operations.
Vertical Insertion Capability
The Z axis allows the tool or product to move vertically for: Component pickup, Product placement, Insertion, Screwdriving, Testing, Assembly, Machine loading.
Rotary Product Orientation
The tool shaft can rotate the gripper or product where the component must be aligned before placement or assembly.
Repeatable Production
Programmed robot movement helps maintain a consistent production sequence across repeated cycles. Actual output still depends on correct tooling, fixtures, sensors, guarding and machine integration.
Choose a SCARA Robot When You Need:
Choose a Cartesian Robot When You Need:
The final decision should be based on the actual movement pattern, available space, payload and production cycle.
Horizontal Reach
Measure the furthest distance between the robot mounting position and all required pickup, process and placement points. The robot must reach the entire operation without working continuously at its extreme travel limit.
Z-Axis Stroke
Specify the vertical distance required for: Product pickup, Fixture clearance, Machine loading, Component insertion, Tray stacking, Tool approach and withdrawal. Hyulim’s officially published medium N Type supports Z-axis stroke options from 200 to 300 mm.
Payload
Include the complete moving load: Product, Gripper, Vacuum cups, Tooling, Mounting bracket, Sensors, Valves, Cable and hose supports. For the official medium N Type, Hyulim publishes a payload range from 3 to 10 kg, depending on the selected configuration.
Repeatability
Repeatability indicates how consistently the robot returns to a programmed position. Hyulim publishes repeatability of ±0.01 mm for the medium N Type DSA configuration. The required value should be selected according to the actual assembly, insertion, testing or placement operation.
Cycle Time
Provide the target time for the complete process, including: Product detection, Robot movement, Pickup, Gripper operation, Transfer, Placement, Tool operation, Return movement. Maximum robot speed alone does not determine the achievable production cycle.
Product Inertia
A lightweight but long or offset product can create greater rotational inertia than a compact product with the same weight. Share the product dimensions, centre of gravity and gripping position during robot selection.
End Effector
Common SCARA end effectors include: Pneumatic grippers, Electric grippers, Vacuum grippers, Screwdrivers, Dispensing valves, Inspection cameras, Testing probes, Custom product fixtures. The weight and operating force of the end effector must be included in the application review.
Controller and PLC Integration
Confirm the required: Robot controller, Digital inputs and outputs, PLC communication, Start and completion signals, Product-selection signals, Alarm outputs, Safety circuit, Teaching and programming method. Hyulim lists controllers as a separate category within its industrial robot portfolio.
Operating Environment
State whether the robot will operate in: General industrial production, Electronics manufacturing, Enclosed machinery, Dust-controlled areas, High-cycle operations, Clean manufacturing environments. Any cleanliness, temperature, dust, moisture or special process requirement must be confirmed for the exact selected model.
Provide the following details:
Do not select the robot only by arm length. Payload, inertia, vertical stroke, operating speed, tooling and clearance must be reviewed together.
