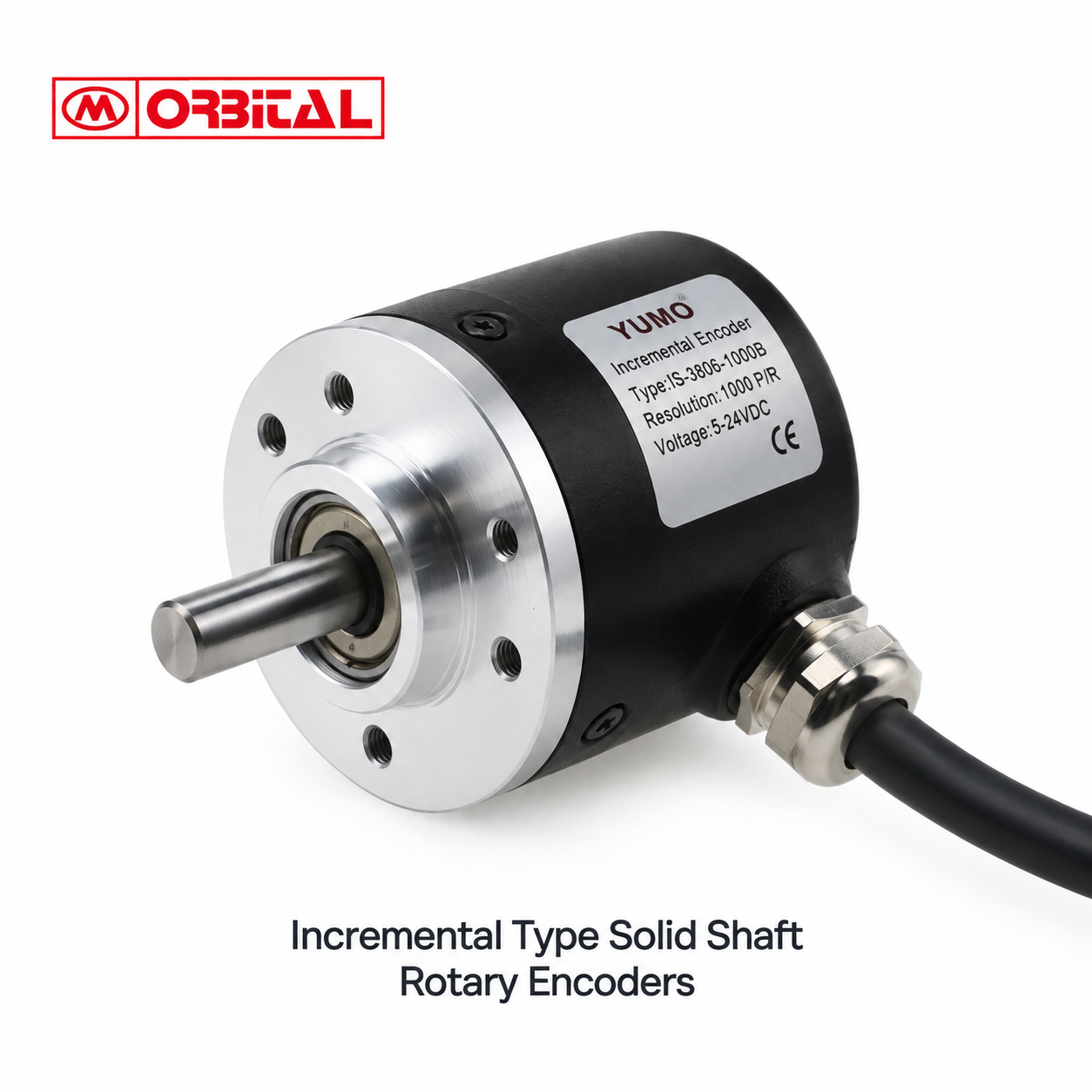

ISC25 Series Solid-Shaft Incremental Rotary Encoder

Application

  • Measure the distance, automatic control ,robot, X-Y labor ,printing, curtained door, shoe machine , textile machine and etc.

Features

  • Miniature size, easy assembling
  • 2 quadrature output channel (A&B) + index signal
ISC25 Series Catalogue

ISC30 Series Solid-Shaft Incremental Rotary Encoder

Application

  • Measure the distance, robot, X-Y working, curtained door, shoe machine, textile machines.

Features

  • Miniature size, easy assembling
  • 2 quadrature output channel (A&B)
  • Full impulses under 1024, it is suitable for narrow area application
ISC30 Series Catalogue

ISC38 Series Solid-Shaft Incremental Rotary Encoder

Application

  • Measure the distance, automatic control, robot, X-Y labor, printing, curtained door, shoe machine, textile machine and etc.

Features

  • Miniature size, easy assembling
  • 2 quadrature output channel (A&B) + index signal
ISC38 Series Catalogue

ISC50 Series Solid-Shaft Incremental Rotary Encoder

Application

  • Measure the distance, angle, position acceleration, automatic control, robot, X-Y labor, printing, molding machine, packing machine, machine tool and etc.

Features

  • Miniature size, easy assembling
  • 2 quadrature output channel (A&B) + index signal
  • Resolution up to 3600 pulses
ISC50 Series Catalogue

ISC58 Series Solid-Shaft Incremental Rotary Encoder

Application

  • Automatic control, control of transportvehicles, robot, X-Y labor, printing, fork truck, CNC tooling machine and etc.

Features

  • High reliability, long life, strong anti-interference ability
  • 2 quadrature output channel (A&B) + index signal
  • Square flange be used in numerical control machine
ISC58 Series Catalogue

ISC60 Series Solid-Shaft Incremental Rotary Encoder

Application

  • Tensile stress control, cross-table positioning , valve position control, robot, X-Y labor ,printing machine and etc.

Features

  • High reliability, long life, strong anti-interference ability
  • 2 quadrature output channel (A&B) + index signal
  • Square flange be used in numerical control machine
ISC60 Series Catalogue

ISC70 Series Solid-Shaft Incremental Rotary Encoder

Application

  • Measure the distance and measure the speed, position at CNC tooling machines, robot, X-Y labor, printing machine and etc.

Features

  • High reliability, long life, strong anti-interference ability
  • 2 quadrature output channel (A&B) + index signal
  • Square flange be used in numerical control machine
ISC70 Series Catalogue

ISN40 Series Solid-Shaft Incremental Rotary Encoder

Application

  • Measure the speed and the rotational speed, textile machines, embroidery machines, robot, X-Y labor, printing machine and etc.

Features

  • High reliability, long life, strong anti-interference ability
  • 2 quadrature output channel (A&B) + index signal
ISN40 Series Catalogue

ISN44 Series Solid-Shaft Incremental Rotary Encoder

Application

  • Measure the speed, tensile stress control, length dimension with measuring wheel, embroidery machines , textile machine and etc.

Features

  • High reliability, long life, strong anti-interference ability
  • 2 quadrature output channel (A&B) + index signal
ISN44 Series Catalogue

ISL58 Series Solid-Shaft Incremental Rotary Encoder

Application

  • Be used in area of automatic control,measurements,robotic X-Y labor and printing.
  • Square flange,be used in numerical control machine.

Features

  • Flange adapters,long working life,high shock.
  • 2 quadrature output channel (A&B)
  • Full impulses under 1024, it is suitable for narrow area application
ISL58 Series Catalogue

ISL68 Series Solid-Shaft Incremental Rotary Encoder

Application

  • Be used in automatic control,measurements,robotic,X-Y labor and printing.

Features

  • High reliability,long life,strong anti- interference ability and wide range temperature adaption.
  • Adapted 4 bearings design, can be hung on the synchronous wheel, and ISL68 contain soft connector to ensure the encoder spindle without damage.
ISL68 Series Catalogue

Rotary Encoder E40

Technical Specification

PPR 50,100, 200,250, 360,500,1000,1250,1024,1800,2000, 2500, 3600,5000
Voltage 5 VDC or 8 - 24 VDC
Output Push Pull / Line Driver
Shaft Dia 6mm
E40 Catalogue

Rotary Encoder E620 / E520

Technical Specification

PPR 2, 5, 10, 20, 25, 30, 40, 50, 60, 80, 100, 115, 125, 127, 150, 180, 200, 250, 360, 400, 500, 600, 750, 900, 1000, 1024, 1250, 1400, 1500, 1800, 2000, 2024, 2250, 2400, 2500.....25000
Voltage 5 VDC / 10 / 24 VDC
Output OC PNP / NPN / PP / LD
Shaft Dia 6, 8, 10mm
E520 Catalogue
E620 Catalogue

Rotary Encoder HTR - M2

Technical Specification

PPR 40, 50, 60, 100, 150, 200, 250, 300, 360, 400, 500, 1000.
Voltage AB phase Open Collector NPN
Output 5- 26 VDC
Shaft Dia 6mm
HTR - M2 Catalogue

Rotary Encoder HTR - W1

Technical Specification

PPR PPR : 10, 20, 30, 40, 50, 60, 80, 100, 120, 125, 150, 180, 200, 250, 300, 360, 400, 500, 512, 600, 720, 800, 1000, 1024, 1200, 1500, 1800, 2000, 2048
Voltage AB phase Open Collector NPN
Output 5- 26 VDC
Shaft Dia 6mm
HTR - W1 Catalogue

E 400 / E 401 / E 410 / E 411

Technical Specification

PPR 2, 5, 10, 20, 25, 50, 60, 80, 100, 125, 150, 200, 250, 360, 400, 500, 900, 1000, 1024, 1250, 2000, 2048, 2250, 2400, 2500......25000
E 400 / E 401 Hollow Dia -6, 8, 10mm
E 410 / E 411 Hollow Dia - 15mm
Voltage 5 VDC, 10/24 VDC
Output OC PNP/NPN/PP/LD
E410 Catalogue
E400 Catalogue

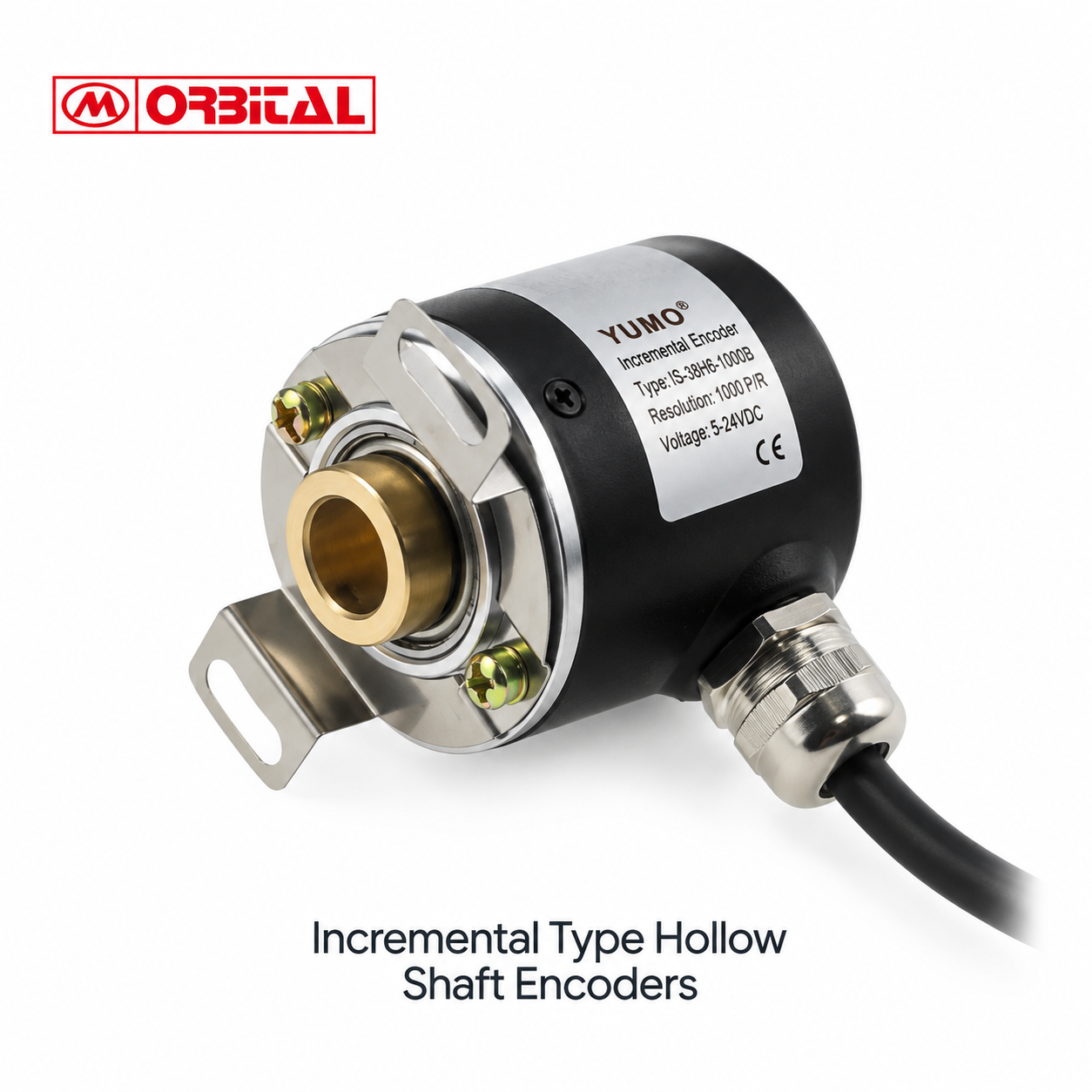

Hollow Shaft Encoder HTR - HB

Technical Specification

PPR 10, 20, 30, 40, 50, 60, 80, 100, 120, 125, 150, 180, 200, 250, 300, 360, 400, 500, 512, 600, 720, 800, 1000, 1024, 1200, 1500, 1800, 2000, 2048
Voltage 5 VDC or 8-26 VDC
Output Push Pull / Line Driver
Hollow 5, 6, 6.35, 9.52, 10mm
Shaft Dia 8,9.52,10mm
HTR - HB Catalogue

Hollow Shaft Encoder HR - HD

Technical Specification

Hollow Diameter 30 mm
Pulse per Revolution 1024 PPR.
Voltage 8 - 26 VDC or 5 VDC
Output A, B, or A, B, A, B
HR - HD Catalogue

Rotary Encoder HTR - 6C

Technical Specification

PPR 2, 5, 10, 20, 30, 40, 50, 60, 80, 100, 120, 125, 150, 160, 180, 200, 250, 300, 360, 400, 500, 512, 600, 720, 800, 900, 1000, 1024, 1200, 1500, *1800, 2000, *2048, 2500, *3000, *3600, *4000, *5000
Voltage DC 8~26V, DC 5V fixed
Output Push pull, Line driver
Shaft Dia 10mm
HTR - 6C Catalogue

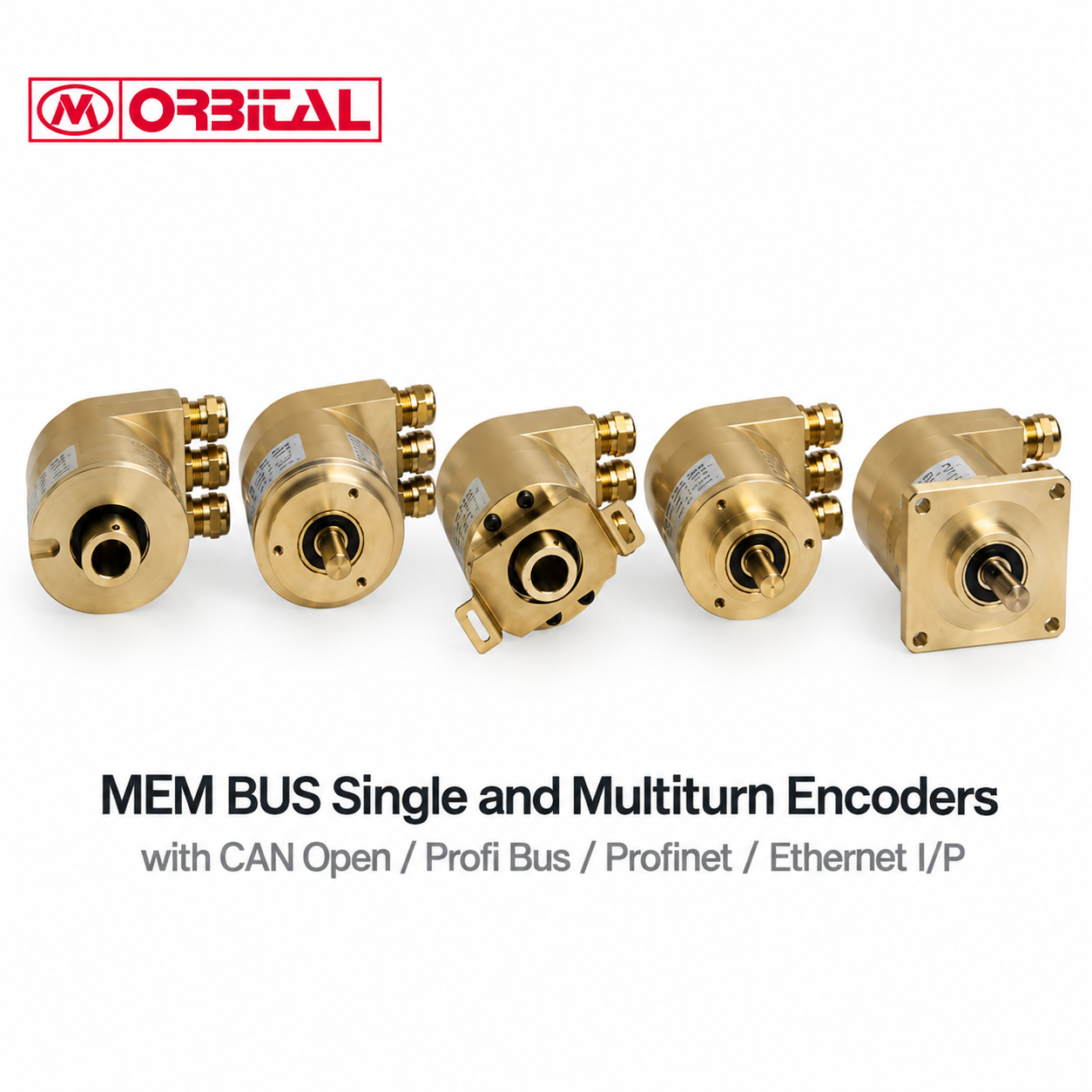

MEM BUS Single and multiturn encoders with CAN Open / Profi Bus

Technical Specification

Operating principle magnetic
Resolution/revolution   8192 step/rev. – 13 bit
Revolutions no. (multiturn) 65536/16 bit
Initializing time   < 1 s
Data memory   >21 years power off*
Fielbus Interface   CANopen, Profibus DP
Supply   5 ÷ 28 Vdc Protection against polarity reversal
Consumption   2 W
Accuracy ± ½ LSB
Connection outlet   3 cable glands or 2 cable glands
Interference immunity   EN 61000-6-2
Emitted interference   EN 61000-6-4
Download Catalogue

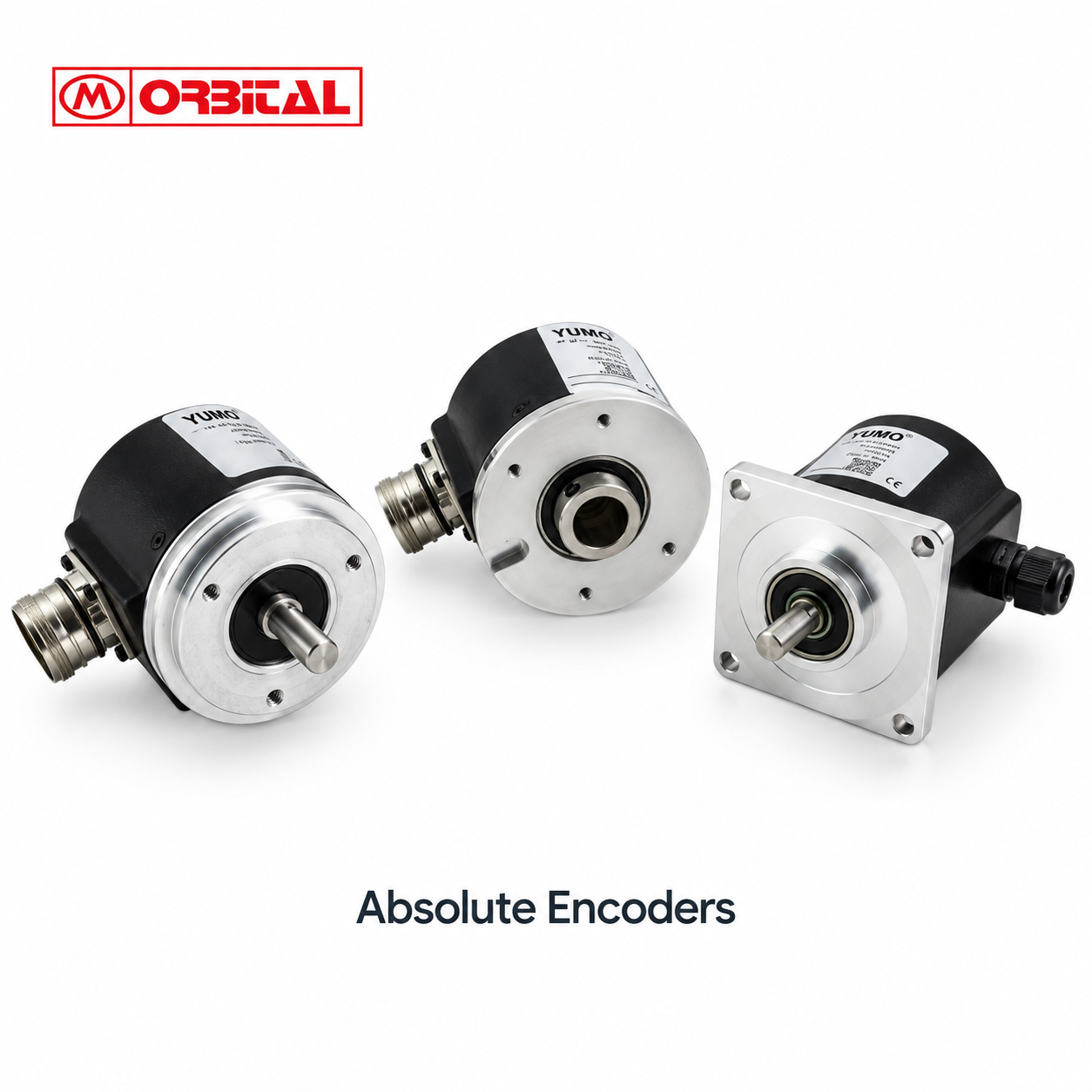

Single Turn Absolute Encoders - MRE 520 / MRE 620 / M540

Technical Specification

Pulse code   Binary or Gray
Resolution 8 bits  , 9 bits, 10 bits , 12 bits, 13 bits
Positions/revolutions 256  , 512, 1024, 4096, 8192
Output signals SSI Serial output (RS422), NPN or PNP open collector or push-pull parallel output
Supply 10 ÷ 24 Vdc or 5 Vdc ± 5%
Download Catalogue

Single Turn Magnetic Absolute Encoders

Technical Specification

Resolution 10, 11,12, 13 bit
Code Binary
Electronic Output Serial SSI 5V
Supply Voltage 5/ 24 vdc or 10/ 24 vdc 0r 5vdc
Connection 1 meter Axial or redaial 1 m long
Download Catalogue

EM / REM Magnetic Incremental Encoder

Technical Specification

PPR 8, 10 , 16, 20, 25,32,40,50, 64, 80, 100, 125, 128, 200, 250, 256, 400 500 512, 1024, 2048
Voltage 5-24 vdc
Output 6 channel LD
Shaft Dia 6, 8, 10mm
Download Catalogue
