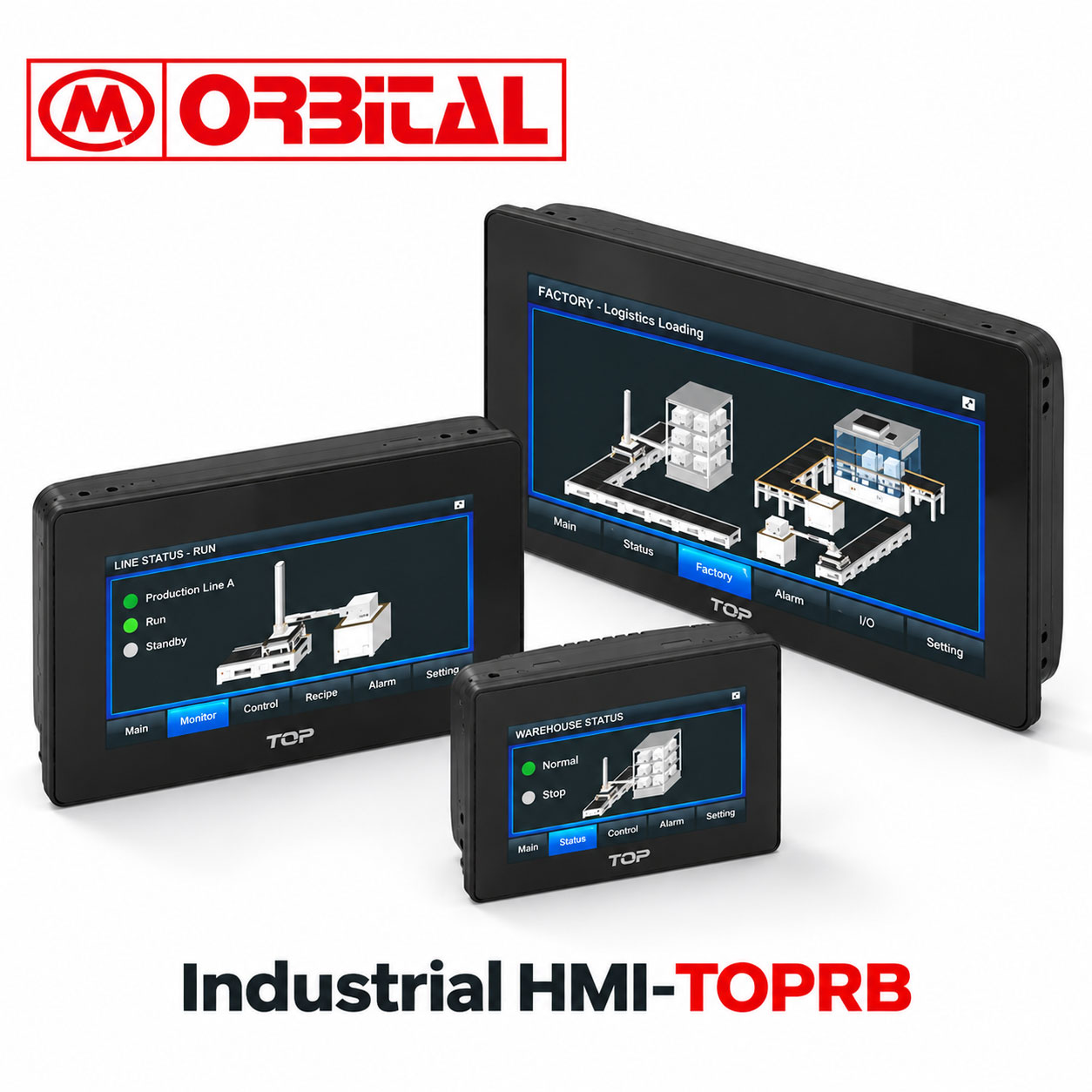

Basic Industrial Touch HMI for Panel Mounted Machine Control
TOPRB is a basic embedded HMI series for panel-mounted machine monitoring and control. The supplied catalogue lists 10.1 inch, 7 inch and 4.3 inch models, quad-core processing, 16M full colour, high-resolution display options and industrial controller compatibility. Its final communication arrangement varies by model, so the part number should be fixed after checking the PLC and panel requirement.
This page is based on the supplied product catalogue. Model-dependent interfaces, dimensions, certifications and optional features must be confirmed against the final ordered part number and latest manufacturer documentation.
This series is intended for industrial automation environments where the HMI must be selected around the required interface layout, operator experience and installation method. Orbital Mekatronik can review the application inputs and help you request a suitable configuration or exact model.
| Parameter | Catalogue information |
|---|---|
| Models shown | TOPRB1000WD, TOPRB0700WD and TOPRB0400WD |
| Display sizes | 10.1 inch, 7 inch and 4.3 inch TFT colour |
| Resolution | 1024 x 600; 800 x 480; 480 x 272 respectively |
| Colour and backlight | 16M colours; LED backlight; 50,000 hour life stated |
| Touch | Analog resistive film; 1 million times or more stated |
| CPU | Quad-core CPU |
| Serial | Up to three serial channels; configuration varies by model |
| Ethernet | Two RJ-45 ports for 10.1 inch model; one for 7 and 4.3 inch models stated |
| USB | USB host and USB device; host supports storage and barcode scanner using standard keyboard protocol |
| Memory | 128 MB screen memory; real-time clock and operation LED stated |
| Power | 24 VDC 20 to 28 VDC; 15 W stated |
| Protection | IP66 stated; CE UL UKCA marked as on progress in catalogue |
| Operating environment | -10 to +50 C; 0 to 90 percent RH no dew; no corrosive gas |
A panel HMI option where operators need machine status, messages, touch controls and controller connection.
Analog resistive touch may be considered when it suits the intended operator interaction and application.
USB host support for storage and standard keyboard-protocol barcode scanner is listed; confirm implementation requirements.
Serial and Ethernet capabilities can be evaluated against the actual controller and network architecture.
For TOPRB selection, provide the required display size, PLC or controller make, communication protocol, number and type of serial connections, Ethernet requirement, USB peripheral use, panel cutout space, power supply and environmental conditions. Check the actual model because interface count differs across 10.1, 7 and 4.3 inch variants.
Confirm the exact model code, display size, ports, controller protocol, power requirement, mounting dimensions, environmental protection, optional hardware and certificate status before procurement. Do not assume a feature is included across every series variant.
Send the controller make and model, protocol, required screen size, panel or machine mounting details, power supply, quantity and site location. Orbital Mekatronik can help align the HMI selection with the integration requirement before you place the order.
